Place of Origin:
Dongguan,China
Brand Name:
Fangsheng
Certification:
ISO9001:2015
Model Number:
FSNMZ2D4N426-AFL

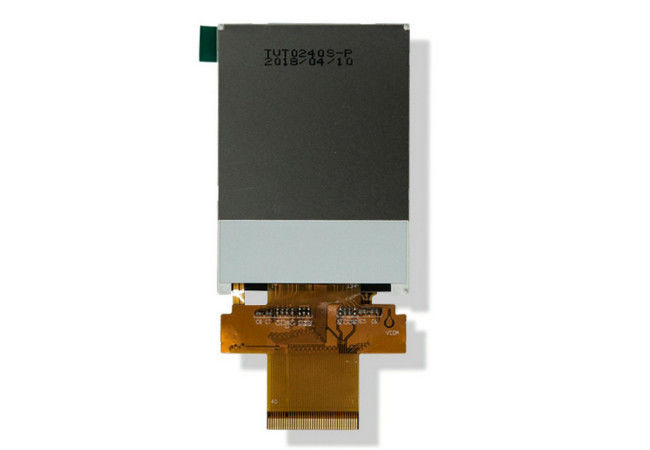

2.4 Inch Lcd Display 240 * 320 TFT LCD Module With Resistive Touch Panel 16 Pins Drive IC ILI9341 Controller
A. Specifications:
|
Item
|
Contents
|
Description
|
|
1
|
Product Name
|
2.4 Inch TFT Lcd Module 240 * 320 wtih Resistive Touch Panel
|
|
2
|
Module Size
|
42.72 mm * 60.26 mm * 2.3 mm T
|
|
3
|
Resolution
|
240 * 320
|
|
4
|
Dot size
|
0.153 (H ) * 0.153 ( V )
|
|
5
|
View Angle
|
12 O ' Clock
|
|
6
|
Interface Type
|
RGB Strip
|
|
7
|
Pins Number
|
16 Pins
|
|
8
|
Controller / Driver
|
ILI9341
|
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB/T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
FSNMZ2D4N426-AFL is 240 * 320 dots resistive touch Lcd Module with ILI9341 controller. We promise the long term continuity supply for this product no less than 17 years since 2001.
B. Product Applications:
C. Structure Diagram:
D:Transferring board is used to amplify the Lcd interface so that we can easily and quickly to function the Lcd. We tend to like making the Lcd work before designing the product.Conector is used to connect the LCD to the PCB via FPC
Fangsheng is a high-tech company specializing in R&D, production and sales of LCD and LCM since 2001. Our company boasts a professional team with years of experience in the LCD technology, and has established a perfect quality and a management system.We will spare no effort in innovation and lean manufacturing.
