Place of Origin:
Dongguan,China
Brand Name:
Fangsheng
Certification:
ISO9001:2015
Model Number:
FS154H1502QX
A. Specifications:

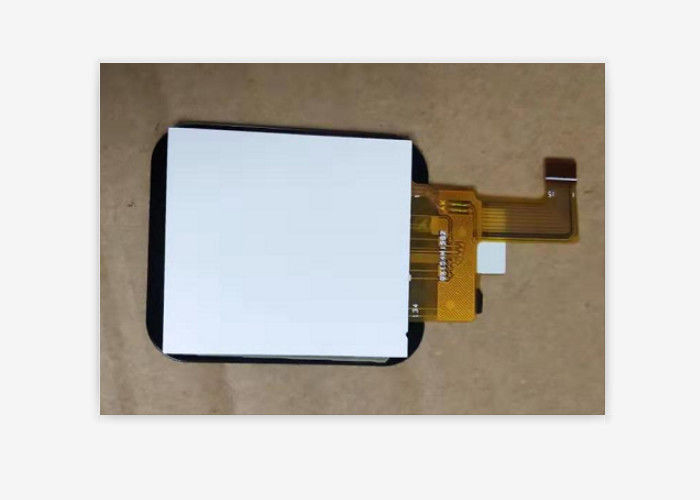

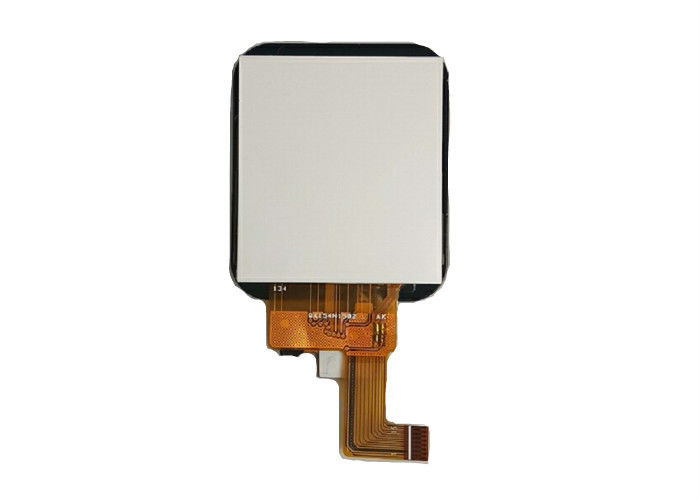

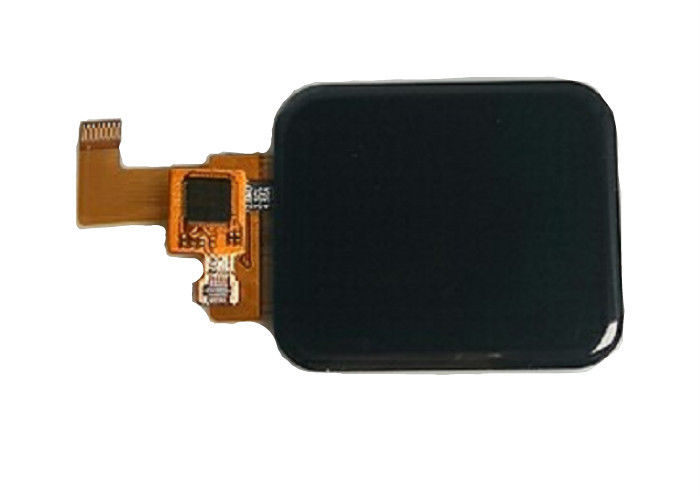

* FS154H1502QX is a small Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 240x240 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
|
ITEM
|
CONTENT
|
DESCRIPTION
|
|
1
|
Display outline size
|
30.52 ( H ) * 33.72 ( W ) * 1.76 mm ( T )
|
|
2
|
Luminance |
180cd / M2
|
|
3
|
Resolution
|
240 RGB ( H ) x 240 ( V )
|
|
4
|
With /Without Touch screen
|
CTP Or Without Option
|
|
5
|
Interface
|
3 wire 2 Lane |
|
6
|
Backlight
|
3 - Led White In parallel
|
|
7
|
Color
|
262K |
|
8
|
Drive IC
|
ST7789V
|
Our Advantage:
1 . Factory direct price.
2 . Good quality.
3 . Quick shipping within 5 days.
4 . For stocks, no moq , 1pc ok . small order welcome..
5 . Online payment.
6 . Support 7 days refund.
7 . After sales services 24 hours / 7 days
Our Certificates:
1. GB / T19001-2016 idt ISO9001:2015
2. CE & ROHS
3. SGS of LCD Display
B. Product Details:
We have a series of small lcd screen solutions can be provided.
Most of our products can be used for Wearable device/Smart watch for kids/Men/Woman/POS system/ Vehicle device/Medical device and so on.
1.54 inch tft lcd touch screen with MCU ips square wide screen for electronic products
is a small size ips wide viewing direction lcd display ,it can go with resistive touch panel or without.240*240 resolution, 180~200cd/m2 brightness.
C. Structure Diagram:
FQA
1.Q: Order process
A:PO is placed by clients → PI is issued by FS → Payment by clients → Lead time is
confirmed by FS → Shipping instrction by Clients → Delivery → Cargo tracking →
Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 15-30 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of FS confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to FS → Formal
report after goods received by FS → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
