Place of Origin:
Dongguan, China
Brand Name:
Fangsheng
Certification:
ISO9001:2015
Model Number:
FTP1007TP01

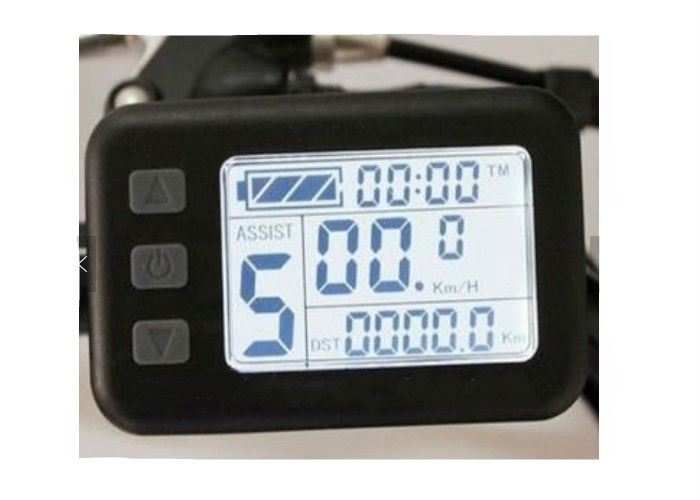

Custom 5V Lcd 7 Segment Speedometer Car Speed Meter Lcd Display Screen
A. Product Specifications:

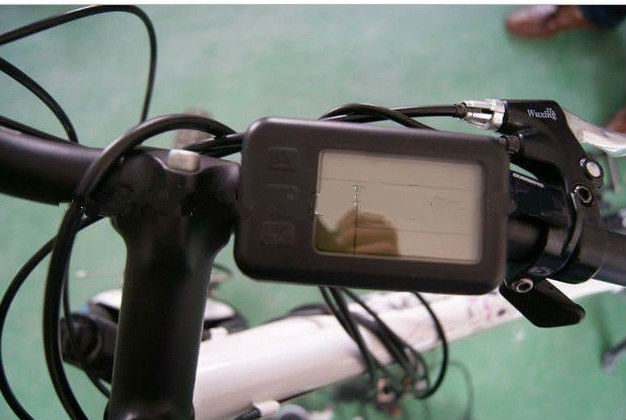

FTP1007YP01 is TN type lcd display to be use on the electrombile, speedometer, Bicycle or Ebike of recorder, etc. Custom lcd according to customer product.
| ITEM | CONTENT | DESCRIPTION |
| 1 | Lcd Type | TN Segnement Lcd Display |
| 2 | Outline Size | 108mm ( L ) * 75mm ( W ) * 1.1mm T |
| 3 | VA Size | 111mm ( L ) * 72mm ( W ) |
| 4 | Viewing Direction | 6 O ' clock or 12 O ' clock |
| 5 | Voltage | 5.0V |
| 6 | Display Mode | Positive |
| 7 | Polarizer Mode | Transmissive |
| 8 | Operation temp | - 20°C TO + 70°C |
| 9 | Storage temp | - 30°C TO + 80°C |
| 10 | Contactor | Matel pin or rubber |
Quotation is base on parament and lcd dimension, because of different order quantity and product parameters. For detailed price, please contact us!
We have strict quality control, to ensure product quality.
Firstly, whole production line is in a low temperature, dry and sterile environment.
Secondly, whoever enters the workshop must wear overalls.
Thirdly, There is an air shower at each workshop doorway, to blow off dust particles on the surface of overall.
Finally, after products have been produced, every lcd or lcm will be 100% tested.
We can offer you OEM/ODM service. When you want to Customized, please send us follow information, so that we can design for you early.
| lcd display outline size |
Front glass size:___________ mm Rear glass size: _____________ mm Front glass thickness: ___________ mm Rear glass thickness: _______________mm View Area: ___________ mm |
| lcd type | ( )TN ( )STN ( )HTN ( )FSTN ( )VA ( )Other___________ |
| Driving Voltage | ________________V |
| Driving Method | ____/____ duty, ____/____ bias |
| Polarizer | ( )Reflective ( )Transflective ( )Transmissive |
| Special Requirement for Front Polarizer | ( ) UV Protection ( ) Anti-glare ( )Color :___________ ( ) Other:___________ |
| Display Mode | ( )Positive ( )Negative |
| View Angle | ( ) 6 O’clock ( ) 12 O’clock ( ) 3 O’clock ( ) 9 O’clock |
| Connector | ( )Zebra ( )FPC ( )Pin ( )Other_____________________ |
| Temperature | Operating Temperature:__________°C to _________°C |
| Storage Temperature:_________°C to __________°C | |
| Package | ( )Standard ( )Costommized ________________________________ |
| Other Requirement |
Packaging Details
foam tray inner and standard carton outer, packing quantity is according to the specific size and shape.
| 1 Soft poly foam inner reduces damage from complicated and multi-changing environment, LCD display is able to be preserved. | ||
| 2 LCD are Packed by anti-static bags with foam inner.The packing is able to withstand rough handling. | ||
| 3 Our company accepts customized package with your logo and your specific images. | ||
| 4 Packing process consists chiefly of three steps as follows. | ||
| (1)confirm every specification of your goods; | (2)place poly foam into carton and pack your goods; | (3)conduct security test. |
C. Shipping:
| (1)25~35 working days after payment confirmed. | ||
| (2)Express: DHL; FedEx; UPS; TN; EMS; China Post; HongKong. | ||
| (3) TN ,STN ,FSTN LCD MODULE samples Delivery 3-4 weeks. | ||
| (4) Mass production Delivery 4-5 weeks. |
